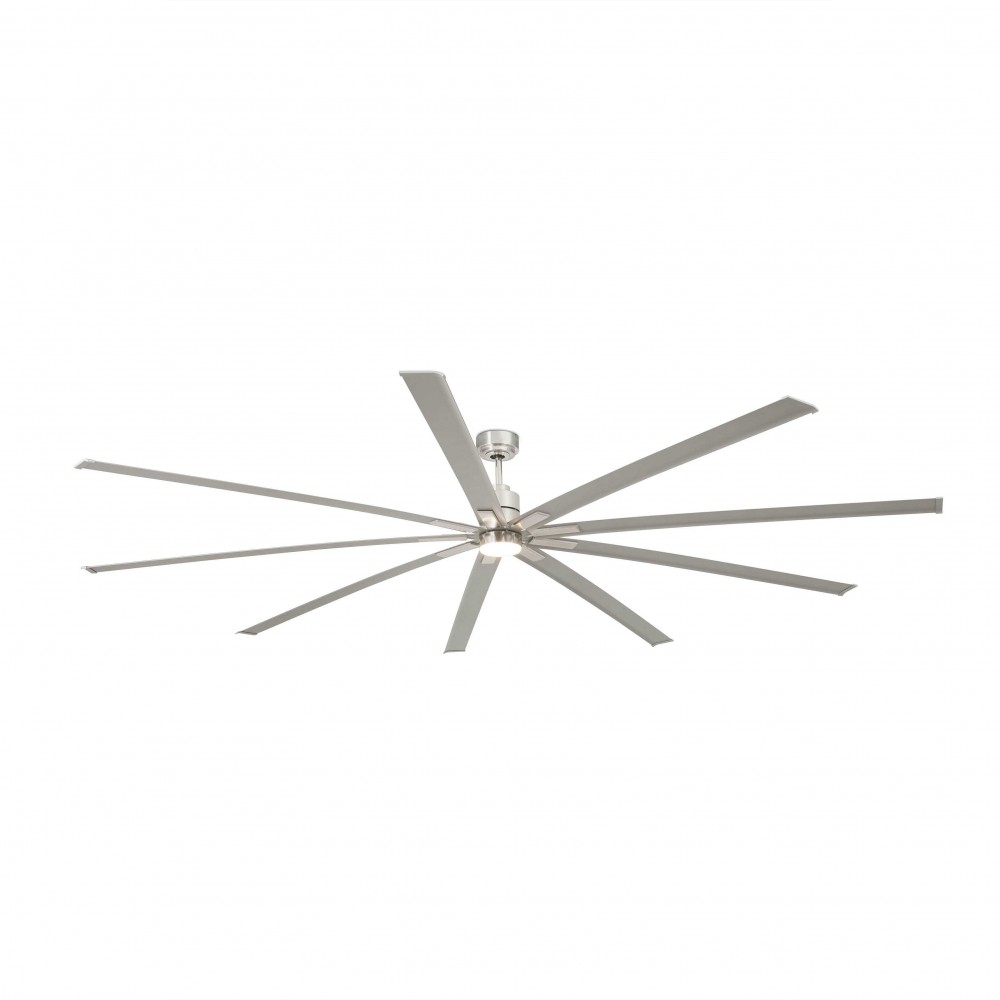

Extralarge DC MANHATTAN LED integrated CCT adjustable light

Extra large fan model MANHATTAN with DC motor, with LED light integrated 16w, DIMABLE 3000, 244 cm. diameter, 36 cm. high, with body in matt nickel finished steel and 9 blades in matt nickel finish aluminum, with polycarbonate diffuser. It has inverter function (summer-winter).

Power of 15-20-25-30-35-56, rpm 50-55-60-65-70-78, and an airflow of 269,12 m3 min. This fan model is designed to ventilate large spaces with a modern and functional style. It is operated by remote control and has 6 speeds, thanks to its DC engine that gives us the highest efficiency with minim consumption.

W/VELOCITY 1: 15

W/VELOCITY 2: 20

W/VELOCITY 4: 30

W/VELOCITY 5: 35

W/VELOCITY 6: 56

RPM/VELOCITY 1: 50

RPM/VELOCITY 2: 55

RPM/VELOCITY 3: 60

RPM/VELOCITY 4: 65

RPM/VELOCITY 5: 70

RPM/VELOCITY 6: 78

The DC-powered fans provide us with more than 50% energy savings, in addition to a greater life of use, with 5 or 6 speeds the wear on each one will always be less than a 3-speed fan.

In addition, the DC engine has greater control of the speed and faster changes in each of them.

This type of DC fans are very silent and their weight is usually lower than AC fans.

This fan can be installed on tilted or dull ceilings, with a maximum slope of 15 degrees of inclination. If so, we will make sure that the fan accepts this type of assembly and that the fan blades do not touch the ceiling.

In case you don't have enough space between fan and ceiling spikes, you can choose a smaller fan or – according to the model – couple an extension tube that is sold separately.

The ideal thing is to place the fan in the center of the room. The blades must maintain a safety distance of about 0.50 cm to any lateral obstacle and a distance at a minimum height of 2.10 centimeters of the floor.

Security regulations must be taken into account. The ceiling fans are products that belong to class I. Therefore, they must be connected to the ground and are prohibited for use in the bathroom.

Normally when the summer ends and we enter the cold winter, we all forget the fan and it is only like a lamp or a decorative object.

With this fan you will not have that problem, because it includes the function inverter or also said otherwise winter/summer function.

Accessing the switch in winter the blades will rotate in the opposite direction, so force the hot air that accumulates on the ceiling of the room downwards, homogenizing the temperature and saving the consumption in heating, so we get a very comfortable feeling in the months of colder and humidity.

Another advantage of the reverse function is that we can ventilate the room without giving us the breeze directly.

If you need more information about this product, do not hesitate to contact us and we will be happy to assist you.
